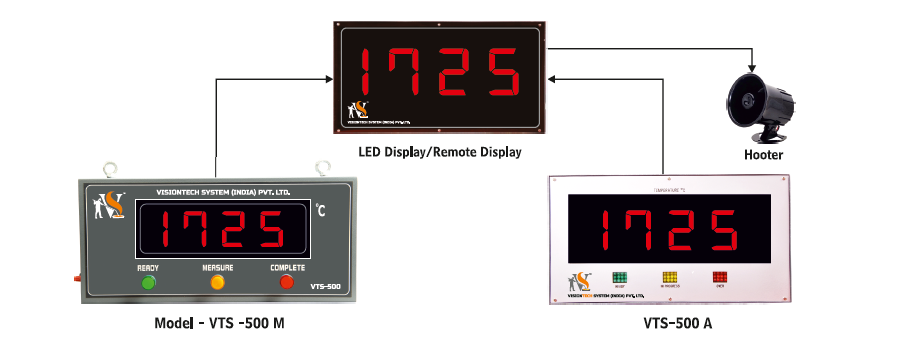

VTS-500 M / VTS-500 A

The Molten Metal Pyrometer Model VTS-500 is a compact unit suitable for measuring the temperature of molten metal in foundries & steel plants. The instrument is a wall mounting unit, which is mains operated instrument and is used with a 8 or 10 feet lance which is connected to the instrument by means of a cable of suitable length.


Range : 700oC - 1800oC
Display : 4 digit, 1" Height Red LED Display
Resolution 1oC
Accuracy +2oC
Input Thermocouple Type R,S, B or K – Factory settable (Set for R type unless otherwise specified)
Compensation Cold junction compensation automatic
Indications – Visual Green, Amber and Red lamps for status indication - Audible : Hooter Indicating measurement over.
Mounting Wall Mounting
Power Supply 230VAC, 50 Hz
Dimensions 200(W) x 300(H) x 100(D) mm
Standard Accessories 1 No. – 12 ft lance with Housing/Receptacle suitable for MK III, MK IV, MK VI, MK VII Thermocouple Tips
