AUP-500 L

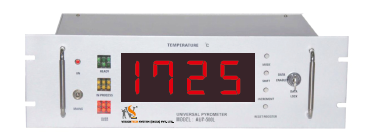

The Molten Metal Pyrometer Model VTS-500 combines several advanced features into a single compact user-friendly instrument. The output temperature is displayed on a large display which is visible from a distance. The microprocessor-controlled unit has a unique measurement & timing algorithm which guides the user through the measurement sequence with visual indication & hooter output. All these features are provided in a single enclosure and is mains operated. This Instrument can be used with a 8 or 10 feet lance which is connected to the instrument by means of a cable of suitable length.


Range : 700oC - 1800oC
Display : 4 digit, 4" Height Red LED Display
Resolution 1oC
Accuracy +2oC
Input Thermocouple Type R,S, B or K – Factory settable (Set for R type unless otherwise specified)
Compensation Cold junction compensation
Response time 3 to 5 seconds
Indications – Visual Green, Amber and Red lamp for status indication.
Hooter indicating continuity & measurement Mounting Wall/shelf Mounting
Power Supply 230VAC, 50 Hz
Dimensions 560(W) x 225 (H) x 125 (D) mm
Weight 6.5 Kgs
